High perfomance programming engine

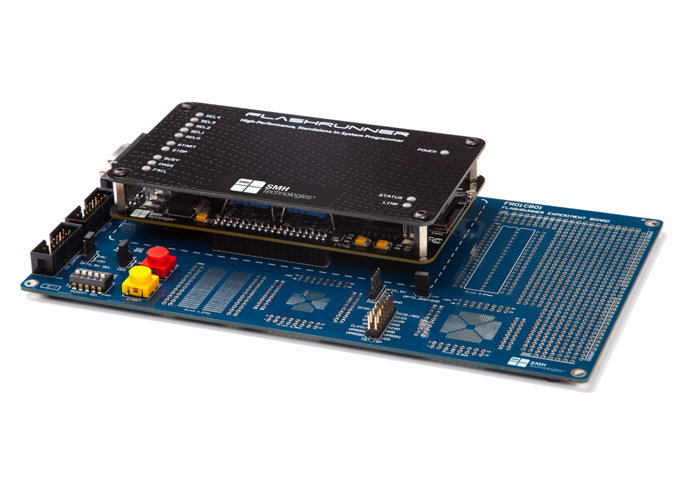

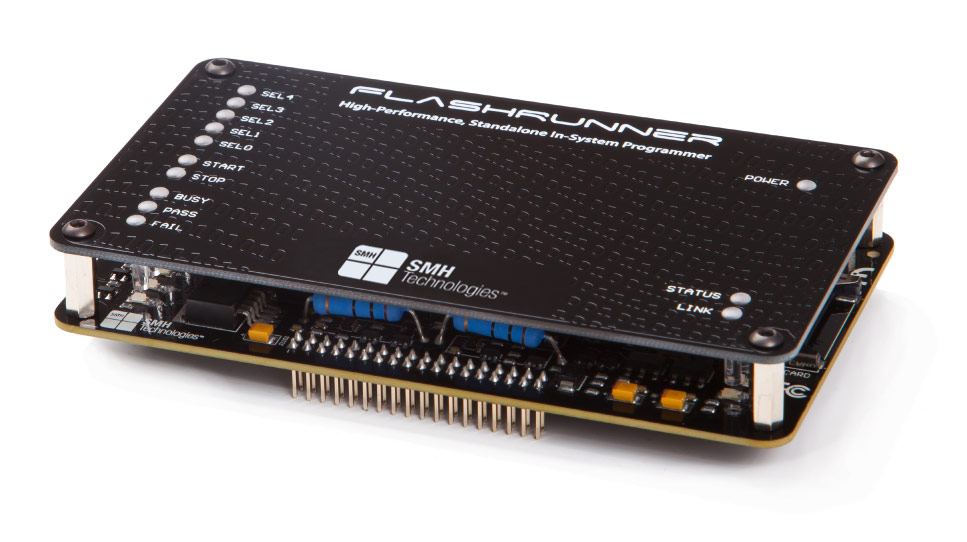

FlashRunner I series is composed by single site programmers, targeted for production environments.
FRI series are Universal and Fully Upgradeable programmers, which work either in full standalone mode or controlled by a host system.

Overview

• Fastest programming algorithms;
• ATE integration;
• Standalone operations (projects and code images stored on a memory card);
• Controllable by any host system via RS-232 or Ethernet (right to the model);
• Supports most ISP protocols (BDM, JTAG, SPI, I2C, MON, ICC, SCI, etc.);
• Flexible and fully configurable;
• Compact and robust design for production environments;
• Data integrity guaranteed;
• All of the models of the FlashRunner I series have been designed for maximum performance and reliability.

Hardware Features

• Power supply input 9 to 24V DC (110/220V AC for the FR01PRO model);
• Five digital I/O lines;
• Two digital I/O or analog output lines;
• Twoprogrammable output voltages (0 to 15V, 0.25A and 0 to 5V, 0.5A);
• One analog input line;
• One programmable clock output;
• Secure Digital memory card (up to 2 GB);
• 512 bytes on-board dynamic memory;
• On-board timekeeper and calendar;
• I/O protection;
• Optoisolated inputs for project selection;
• Two optoisolated command inputs (START and STOP);
• Three optoisolated status outputs (FAIL, PASS, BUSY);
• Optoisolated RS-232 or Ethernet channel.
• FlashRunner’s open architecture makes its firmware easily upgradeable to support both new devices and new features.

Software Features

FlashRunner comes with a Windows utility that allows you to communicate with the instrument and perform the most common operations: send commands, manage SD card files, update the instrument’s firmware, etc.
ASCII-based commands used to control and setup.

Two ways to receive and execute commands:

• Over the RS-232 or Ethernet connection (controlled by a host system (e.g. Windows HyperTerminal);
• Via “scripts” stored in its SD card (Standalone mode).

SD memory card (FAT16).
Unlimitedprojects (scripts).
Log files.
