FlashRunner III Series

Easy Integration in Programming Lines (ATE, ICT, Test Fixtures)
Include all the programming algorithms for a selected silicon producer




Overview

  • Fast programming algorithms;
  • Easy ATE integration;
  • Standalone operations (projects and code images stored on a memory card, FAT16 compatible);
  • Controllable by any host system via RS-232;
  • Supports most ISP protocols (BDM, JTAG, SPI, I2C, MON, ICC, SCI, etc.);
  • Flexible and fully configurable;
  • Compact and robust design for production environment;
  • Data integrity guaranteed.

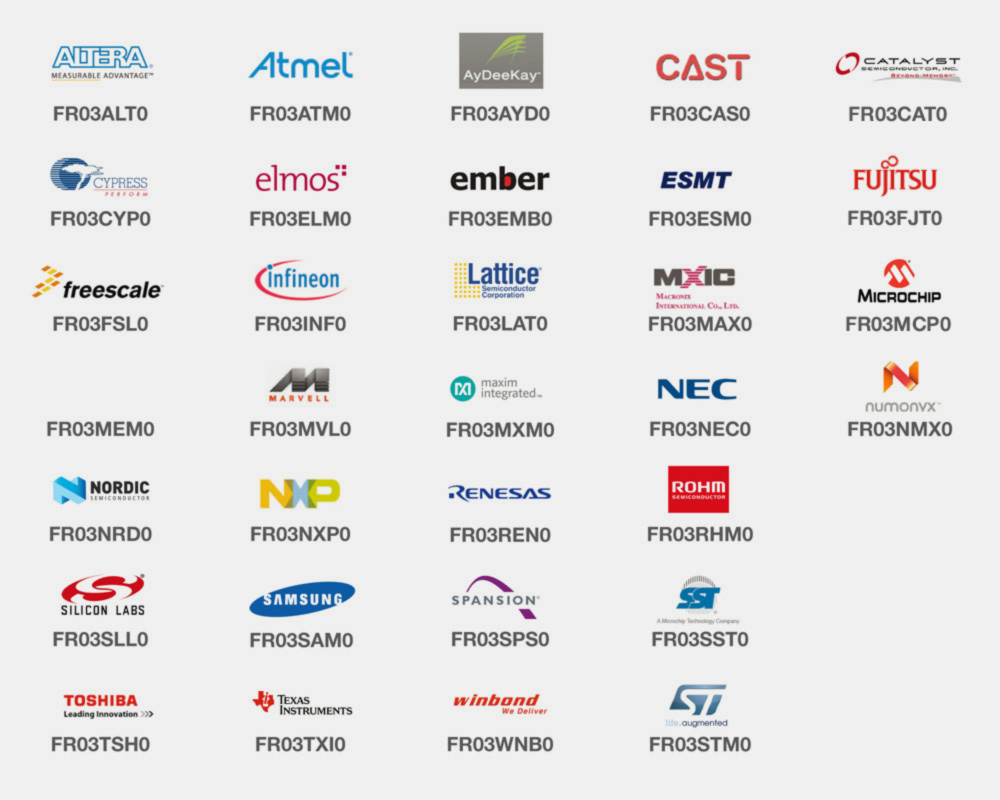

FlashRunner III supports only one Silicon Manufacturer chosen from the device list.

Hardware Features

  • Power supply input 7.5V DC;
  • Five digital I/O lines;
  • Two digital I/O or analog output lines;
  • One programmable output voltage (0 to 5.5V, 0.5A);
  • Oneprogrammable clock output;
  • Secure Digital memory card (up to 2 GB);
  • I/O protection;
  • One command input (START);
  • Three status outputs (FAIL, PASS, BUSY);
  • RS-232 channel.

FlashRunner’s open architecture makes its firmware easily upgradable to support new features.

Software Features

FlashRunner comes with a Windows utility that allows you to communicate with the instrument and perform the most common operations: send commands, manage SD card files, update the instrument’s firmware, etc.
ASCII-based commands used to control and setup.

Two ways to receive and execute commands:

  • Over the RS-232 connection (controlled by a host system (e.g. Windows HyperTerminal);
  • Via “scripts” stored in its SD card (Standalone mode).

SD memory card (FAT16).
