The revolutionary technology which introduces the concept of production efficiency, evolving from a programming tool to a Programming System
Overview
FlashRunner 2.0 technology is revolutionary not only for its performances in terms of fast programming speed, but also for the technological leap that it represents, introducing the concept of production efficiency.
SMH is exclusively focused on technology for the programming of microcontrollers and memories: its decennial experience led to the evolution from a simple programming tool to an actual programming system which finalizes and completes FlashRunner’s performance.
The production environment continuously seeks efficiency, productivity and quality. These necessities are covered from FlashRunner 2.0 family which, thanks to its high flexibility and universality, offers a complete range of products from 1 to 32 independent and parallel channels.
A complete series of peripheral features allow a deep evolution, which is similar to the changes that have involved the information and communication technology (phone and TV): namely the migration from a simple tool that guarantees its basic function to a complete and interconnected smart system.
Control:
- Production control panel
- Programming times and statistics
- Interface libraries
- Connections pinout
Command:
- Project wizard
- File transfer manager
- Firmware and software updates
- Windows, Linux and Mac compatible GUI interface
Security:
- Encrypted FRB files to avoid binary hacking
- Dump and compare features of all channels
- LOG file and Production Report file
- User permission management
- Tracking of programming cycles number
- Errors w/ language descriptions

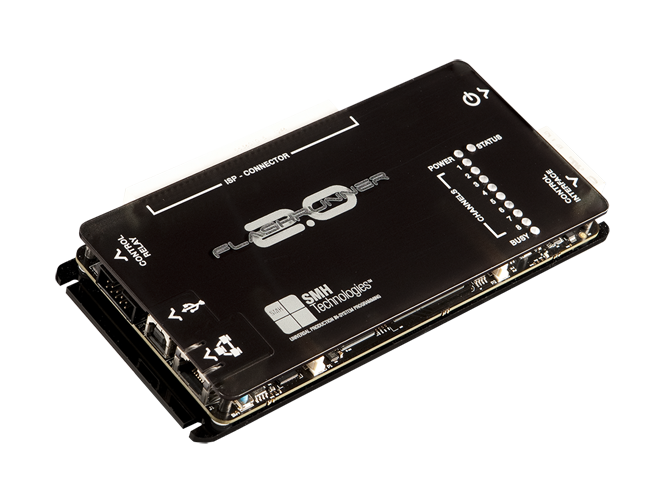

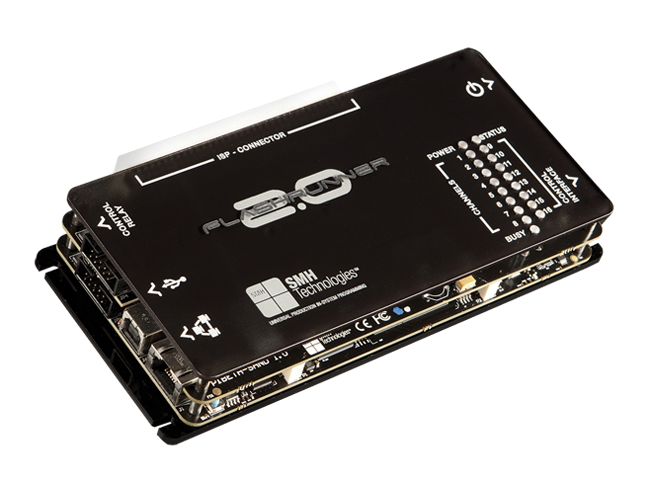

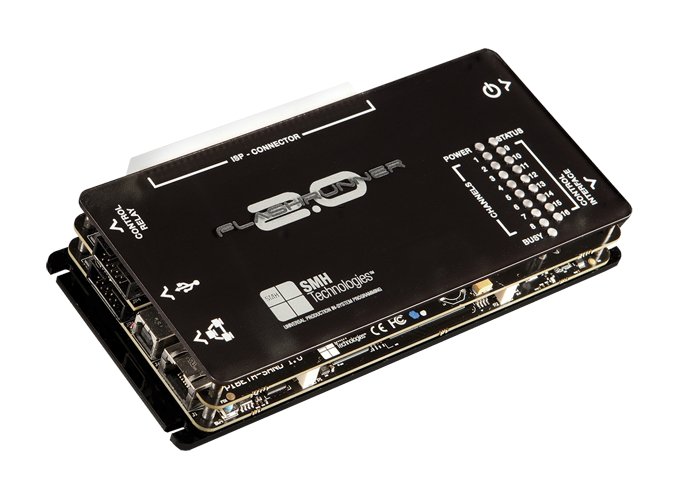

FlashRunner 2.0
Hardware Features
- Compact design for higher mechanical integration;
- Independent ISP channels supporting several communication protocols (JTAG, SPI, I2C, BDM, UART…);
- 8 digital I/O lines for each channel, coupled with dedicated ground return lines;
- Two programmable output voltage lines;
- 1 GB on-board Dynamic Memory;
- On-board timekeeper and calendar for time-stamped log file;
- Fast Ethernet interface up to 1 Gbit/s (optoisolated, autocrossing feature);
- USB 2.0 High Speed communication interface (optoisolated);
- ATE interface for standalone operations (optoisolated);
- Power voltage and current measure for each channel;
- 15V power supply input;
- Operation status LEDs for each channel;
- Integrated control for optional Relay Barrier tool;
- 96 pin DIN In-System Programming connector;
- eMMC and NAND memory support.
Available Models

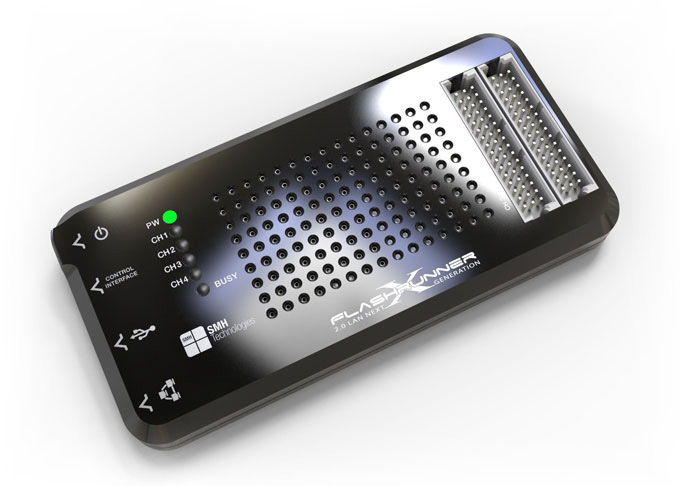

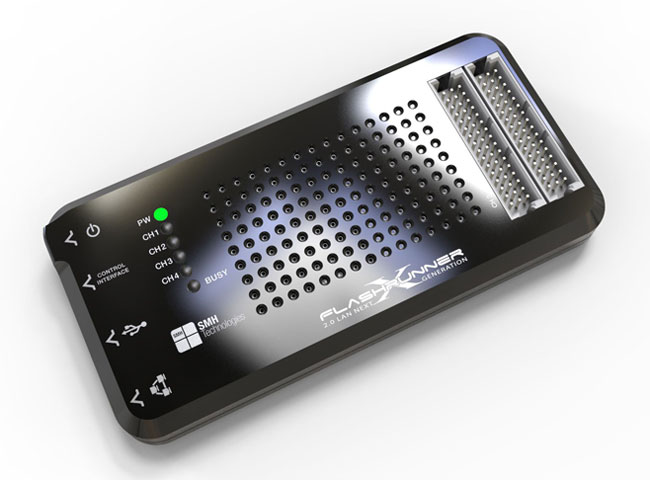

FlashRunner LAN2.0 NXG
Hardware Features
- Easy fixture integration thanks to the compact size: 142x17,6x70mm;
- Independent ISP channels supporting several communication protocols (JTAG, SPI, I2C, BDM, UART…);
- 8 digital I/O lines for each channel, coupled with dedicated ground return lines;
- Two programmable output voltage lines;
- 1 GB on-board Dynamic Memory;
- On-board timekeeper and calendar for time-stamped log file;
- Fast Ethernet interface up to 1 Gbit/s (optoisolated, autocrossing feature);
- USB 2.0 High Speed communication interface (optoisolated);
- Fixture dedicated Control interface for standalone mode (optoisolated);
- Power voltage and current measurement for each channel;
- Integrated control for optional Relay Barrier tool;
- Two 48-pin DIN In-System Programming connectors;
- eMMC and NAND memory support:
- Up to 256 GB storage memory;
- Operation status LEDs for each channel;
- USB communication interface (optoisolated).
Available Models
Single-site programmer
Dual-sites programmer
Three-sites programmer
Four-sites programmer
Software Features
- FlashRunner 2.0 is based on Linux Embedded operating system, which relays on a real time scheduler and a full featured hardware abstraction layer.
- FlashRunner 2.0 is featured with software interfacing libraries which enables customers to achieve a full integration inside their software and across different frameworks, as LabView© and Visual C/C++.
- A new, friendly and interactive GUI (Graphic User Interface) which cut off overall configuration efforts, guiding customers creating a working project in few mouse clicks and detecting mismatches between target device and customer firmware, as well as power supply setup.
Technical Support
Purchasing a product is only part of solving your programming needs. We know that you must count on professional help should the need arise. FlashRunner is sold and supported by a worldwide network of resellers and system integrators, comes with a three-year warranty and is backed up by knowledgeable and fast technical support. Additionally, our engineers are available for custom designs and validation reports, to help you start up your projects and providing you with accurate programming flow certifications.
Device Support
Our supported device list is daily updated and counts more than 6000+ items already. However, if you still can’t find the device you are looking for we offer you a development service which meets your needs. Every request will be handled in order to meet your production deadlines in time.
